BTS AirHook LITE

BTS AirHook LITE

Portable Overhead Anchor

The AirHook Lite is an all-encompassing mobile overhead fall protection anchor point that can be easily moved around a site to suit both working at heights and working in confined space applications.


For confined space application, the AirHook Lite can be fitted with a Type 3 Inertia Reel c/w Recovery Winch via a diversion sheave to allow workers to be safely lowered and raised out of a confined space and in the case of emergency, the worker can be retrieved quickly out of the same area. 360degree swivel allows for the injured person to be rotated away from the confined space entry and moved across to ground level for any first aid requirements.

PRODUCT FEATURES

  • Lightweight powder coated & galvanised steel finish with internal concrete & steel counterweights.
  • Over height anchorage point for personal fall arrest systems.
  • Can be installed with inertia reel c/w recovery handle to allow for safe access & egress into a confined space and in the case of emergency, quick extraction.
  • Winch for raising and lowering vertical mast.
  • Counterweighted base with integrated forklift tine pockets and pallet-jack pockets for ease of mobility.
  • Built in visual overload fall indicator.
  • Counterweighted base has a footprint of 1.2m (3.9 ft) x 1.2m (3.9 ft).
  • Height adjustment of mast from 4.7m (15.4 ft) to 7.2m (23.6 ft).
  • Off set mast of approx. 3.0m (9.8 ft) from central vertical mast.
  • Rated for (2) workers when two AirHook Lite 7 are used in tandem and with an optional BTECH Rail & Trolleys.

Support up to two works with AirHook B-rail

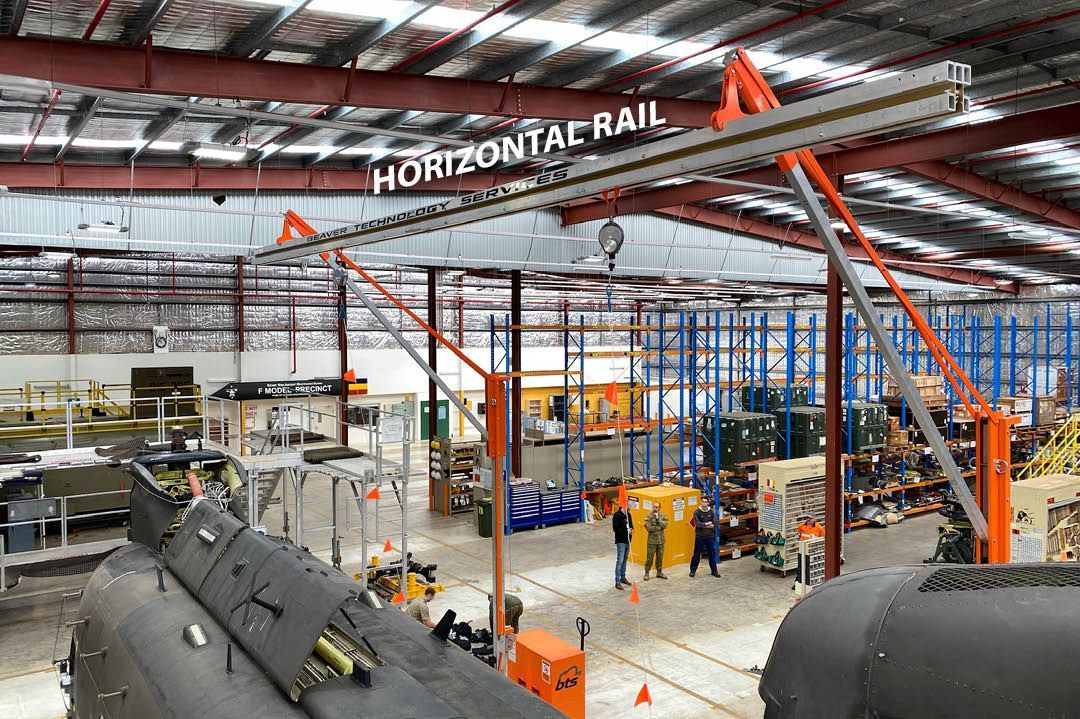

Available in Horizontal Rail configurations (as shown) to suit overhead rail application for up to two (2) workers.



BTS AirHook Lite

Available with an adjustable height, the AirHook Lite provides for an overhead fall protection solution for a wide range of applications including working on top of countless earth moving machinery, maintenance and servicing of highway trucks, other larger plant equipment including generators, motors, etc.


The AirHook Lite can be also used as an effective overhead fall protection anchor when loading and unloading of goods from the back of trucks in distribution and warehouse facilities as it can be moved to multiple locations within a facility.
