The AirStair Free Standing Access Stair System is ideal for use within the aviation industry as an overhead fall protection package in maintenance environments where engineers are constantly combating the issue of finding a solution for safe means of access and egress whilst working with a variety of aircraft with varying heights.

• The AirStair provides two (2) users with a portable means of accessing areas on multiple aircraft types via a full stairway set-up and provides overhead fall protection when working on the aircraft (from the ground to the work area).

• Adjustable outriggers enlarge the base footprint to stabilize and level the AIRSTAIR when in use and retract into the base of the stair to create a small and mobile unit for towing and transportation.

• Components are resilient to Skydrol and other aggressive chemical agents.

• Hi-visibility day & night tape as per IATA requirements – Airport Handling Manual AHM Basic Safety Requirements.

• Counter-weighted so it does not rely on the aircraft body as the support foundation.

• Can be easily maneuvered around a site utilising a tug or similar type of towing vehicle and can be positioned close to the aircraft by two individuals.



These systems feature a rugged steel base with various wheel options, while the upper structure is constructed of high quality lightweight aluminium tubing. This keeps the center of gravity as low as possible for improved stability during transport, operation and storage. The NEW 750mm wide extruded and punched stair treads are made of aluminium, and feature unique open tread design which prevents build-up of contaminants.

Two person fall arrest stair system

• Platform height 3.3m (10.8 ft) to 5.7m (18.7 ft).

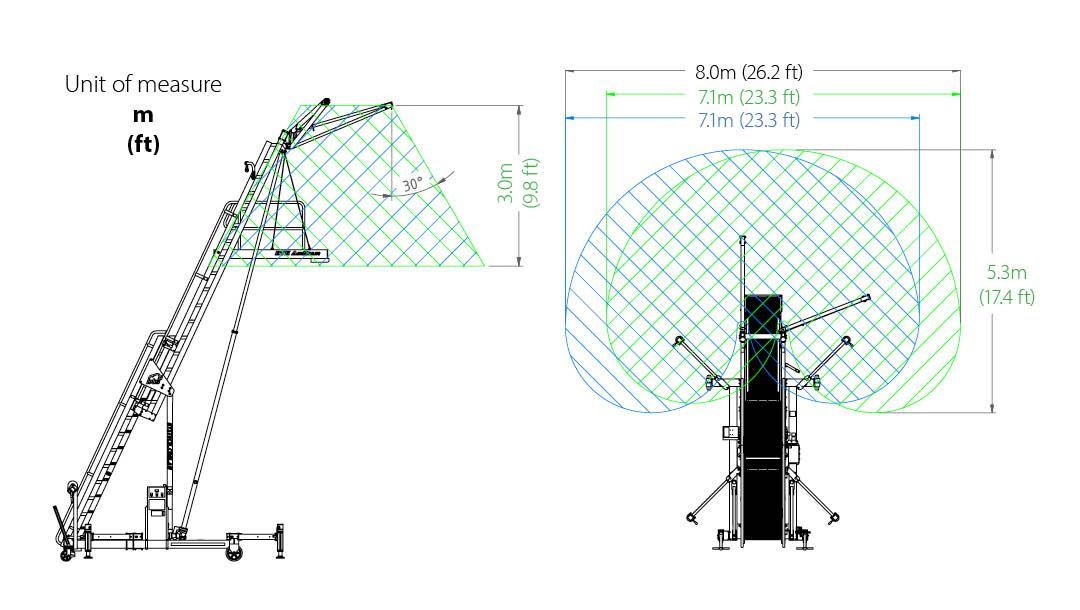

• Swivel arms to maximize safe working area.
• SRL protection while climbing step ladder.
• 750mm (29.5 in) wide aluminium step ladder.
• Electric motor driven by 30V Lithium battery to raise
  and lower the platform.
• Heavy duty stabilizing jack.

BTS AirStair 703357 Unit is designed with a mechanical option to fold down to an overall height clearance of 4.1m (13.4 ft).

BTS AirStair 703357 is operated via a control panel and electrical motor connected to its own 29.4V Lithium battery powered supply.

Optional winch & tool’s basket can be installed to lift 10kg (22 lbs) of equipment up to the top platform, eliminating the need to carry tools up the stair.



Two person fall arrest stair system

• Platform height 4.8m (15.7 ft) to 8.4m (27.5 ft).

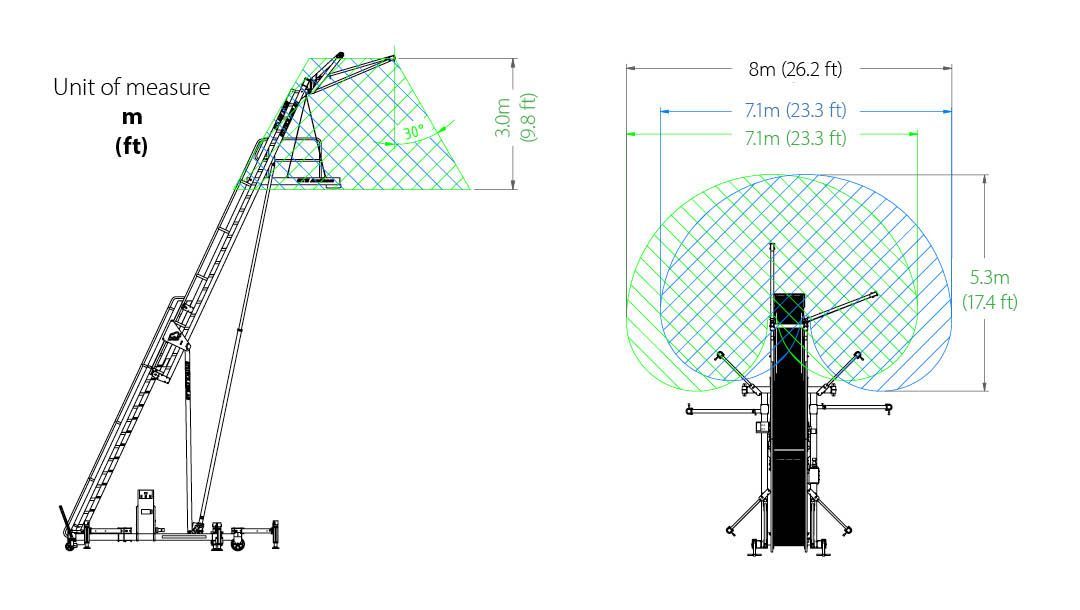

• Swivel arms to maximize safe working area.
• SRL protection while climbing step ladder.
• 750mm wide aluminium step ladder.
• Electric motor driven by 30V Lithium battery to raise and lower the platform.
• Heavy duty stabilizing jack.

BTS AirStair 704884 is operated via a control panel and electrical motor connected to its own 29.4V Lithium battery powered supply.
